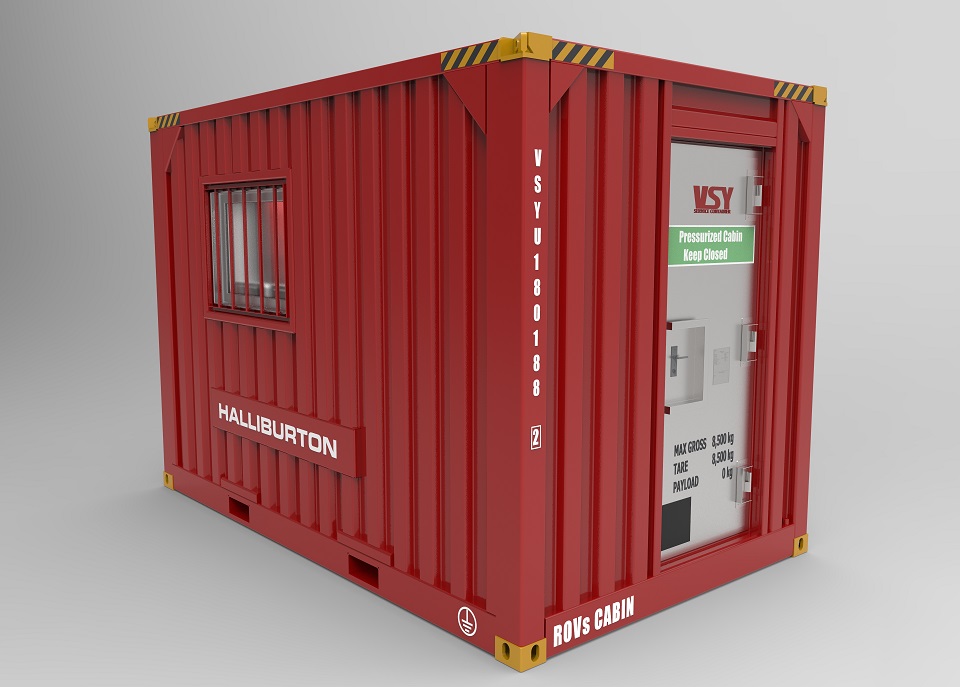

VSY OFFSHORE PRESSURIZED MODULE
*THE HAZARDOUS APPLICATION
Pressurized cabin for hazardous areas is built in compliance with global standards for
hazardous area operation including
IECEx, ATEX, NORSOK, GOST and NFPA496.
All units produced are custom made with the design specific to the client’s requirements and certified
by any Third Party Surveyor – typically these include DNV GL, Lloyd’s, ABS, BV and others.
*FEATURES
The Container body are designed and manufactured as per DNV 2.7-1/ EN12079 to work anywhere
and in temperatures ranging from -40ºC to +50 ºC.
The Dimensions are from 10ft up to 26ft per different dimensions
restriction.
Our products are amongst the highest specified and most robust made anywhere and guaranteed to
work worldwide.
Electrical systems are designed to operate in all regions of the world regardless of voltage,
frequency or rating.
*CERTIFICATION
DNV2.7-1/EN12079 (DNVGL-ST-E271)
DNV2.7-2 (DNVGL-ST-E272)
IEC60079-13* Optional as per Ship Class
Norsok Z-015* Optional as per Ship Class and application area
IMO SOLAS A60
IMO SOLAS H30
VSY 近海增压型服务集装箱模块
*危险区域应用环境
增压型服务集装箱模块是用于多种标准规定的危险区域
标准包括以下：
IECEx, ATEX, NORSOK, GOST 及 NFPA496.
所有服务集装箱模块是根据客户需求，使用环境，气体组别定制集成，同时由第三方监检并出具证书：
主要包括： DNV GL, Lloyd’s, ABS, BV and others.
*特征
集装箱箱壳根据DNV2.7-1/EN12079设计及制造，应用于全球油气行业，适用于-40ºC 到 +50 ºC.
集装箱箱壳从10尺到26尺等不同尺寸根据需求定制
我们根据最高标准定制为坚固耐用的集装箱模块，质量可以保证适用于全球各种恶劣的工作环境。
电气系统根据全球不同使用环境，无论不同电压等级，频率，电源标准而设计。
*标准及证书
DNV2.7-1/EN12079 (DNVGL-ST-E271)
DNV2.7-2 (DNVGL-ST-E272)
IEC60079-13* 根据船级社需求
Norsok Z-015* 根据船级社需求及使用区域
IMO SOLAS A60
IMO SOLAS H30
